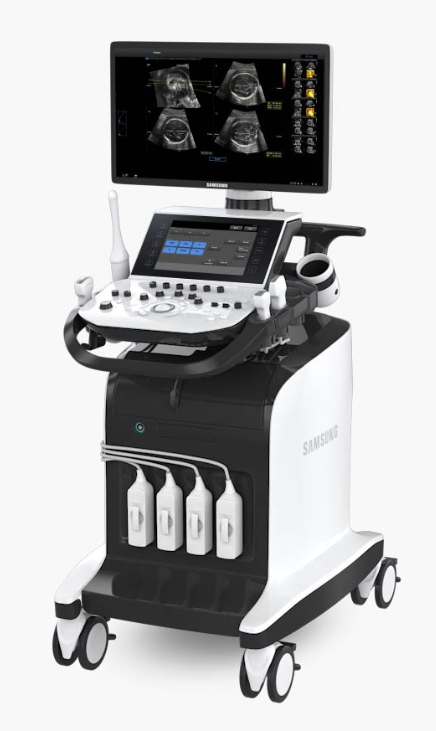

WS80A with Elite

CrystalLive™ 3D

High Definition Volume Imaging™ (HDVI™) is a volume rendering technology that improves visualization of edges and small structures in volume data. HDVI™ provides upgraded marginal expression and image saturation with dedicated image sets for 3D/4D.

CrystalLive™ Color

CrystalLive™ Color, Samsung's advanced blood flow imaging technologies in color mode, enhances the visualization and hemodynamics of the blood flow.

Focusing on diagnostic solutions for women’s health

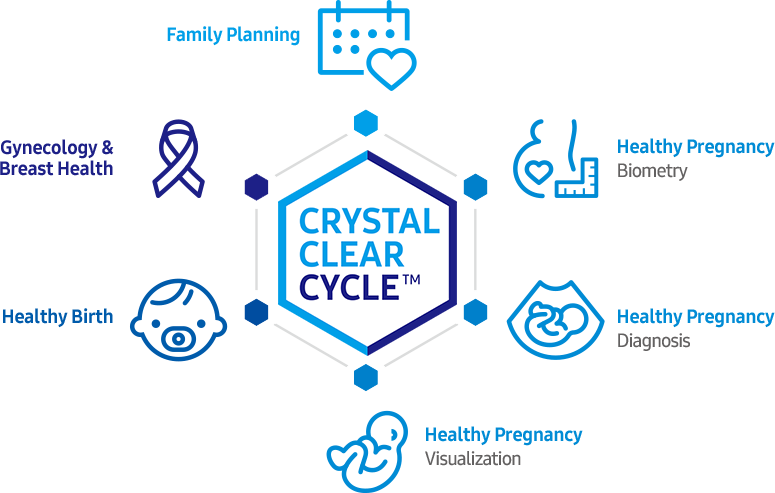

The WS80A with Elite features with Crystal Clear Cycle™,
an integrated solution for women’s health issues,
and provides effective diagnostic solutions for the most significant events in women’s lives.

Advanced 3D Rendering and Color Technologies
Powered by CrystalLive™

CrystalLive™ is a new ultrasound imaging engine applied Samsung’s
sophisticated image processing technologies. WS80A with Elite V4.01 incorporates
CrystalLive™ 3D and CrystalLive™ Color, Samsung’s advanced 3D rendering and color technologies,
to provide improved visualization and structure expression.

CrystalLive™ 3D

Margin enhancement with HDVI™

High Definition Volume Imaging™ (HDVI™) is a volume rendering technology that improves visualization of edges and small structures in volume data. HDVI™ provides upgraded marginal expression and image saturation with dedicated image sets for 3D/4D.
※ Optional Extra

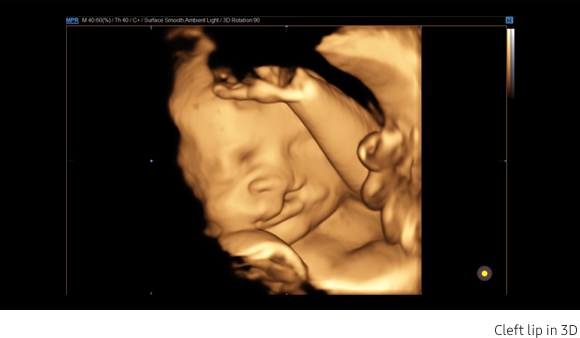

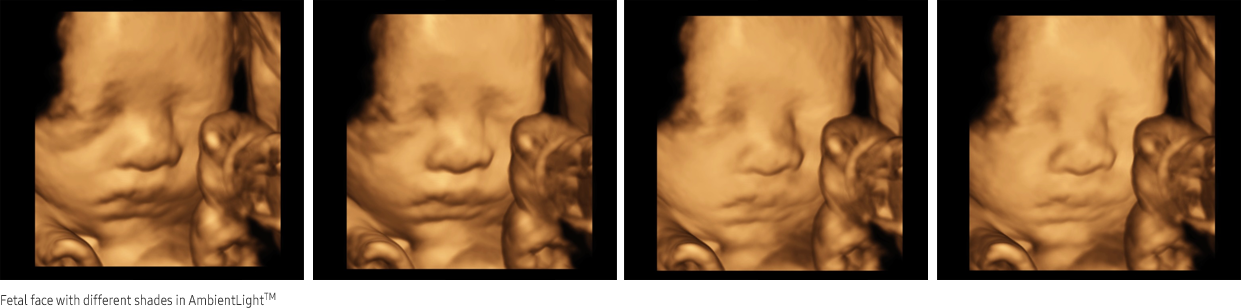

Improved structural description with AmbientLight

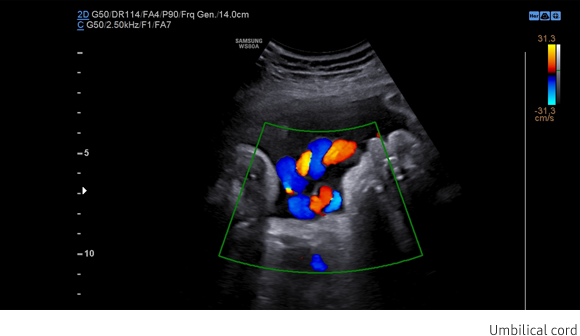

CrystalLive™ Color

CrystalLive™ Color, Samsung's advanced blood flow imaging technologies in color mode, enhances the visualization and hemodynamics of the blood flow.

Simple screening for risk of infertility

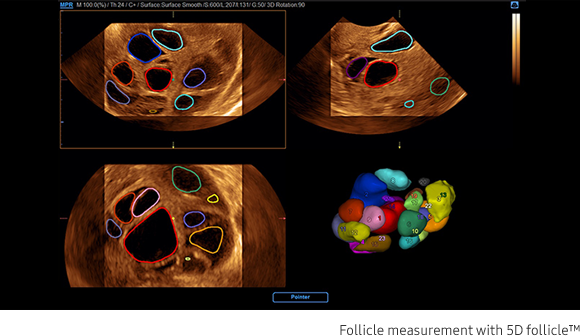

5D Follicle™ (Follicle measurement)

5D Follicle™ identifies and measures multiple ovarian follicles for rapid assessment of follicular size and status during gynecology examinations.

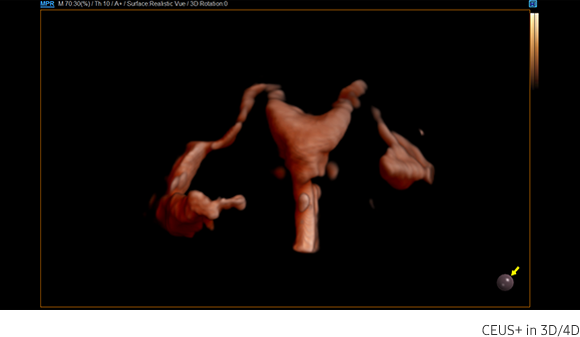

CEUS+ can be used in 3D/4D for effective examination for patency of the fallopian tube and morphology of uterus and endometrium.

Intuitive fetal biometry measurements

BiometryAssist™ (Fetal biometry estimation)

A semi-automatic technology for biometric measurement, BiometryAssistant™, enables users to measure the growth of the fetus more quickly and with greater accuracy while maintaining exam consistency.

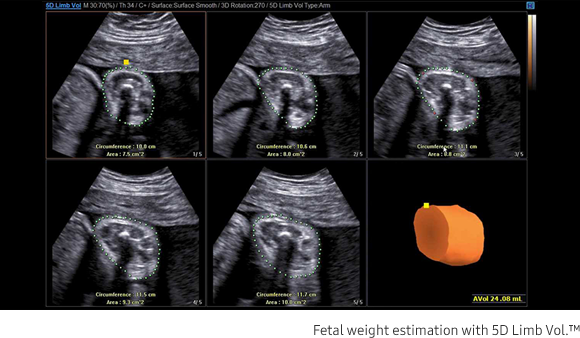

5D Limb Vol.™ (Fetal weight estimation)

5D Limb Vol™. is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set. These measurements can then be used to calculate an accurate estimation of fetal weight as well as provide additional information regarding fetal nutritional status.

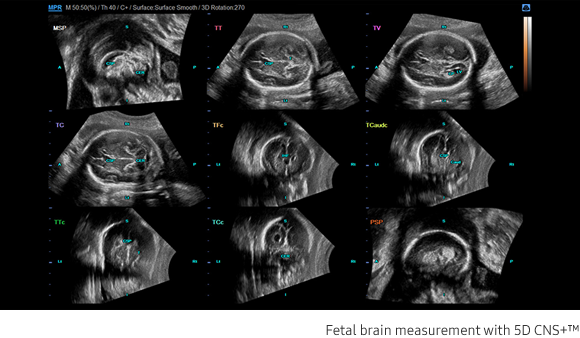

5D CNS+™ (Fetal brain measurement)

5D CNS+™ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamline workflow. It includes axial, sagittal and coronal views with 9 planes.

Enhanced diagnostic confidence

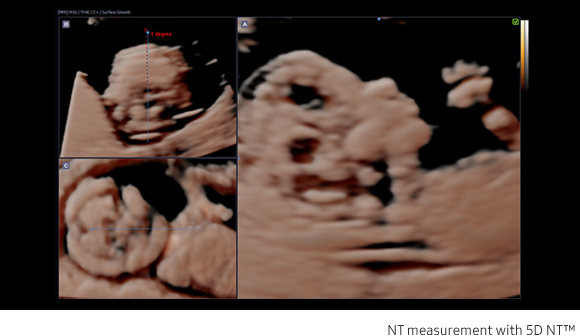

5D NT™ (Nuchal translucency measurement)

5D NT™ (Nuchal translucency measurement) 5D NT™ allows the user to obtain the true mid-sagittal plane automatically by rotating and auto-zooming the image. This advanced technology is especially useful when facing difficult cases involving fetal position.

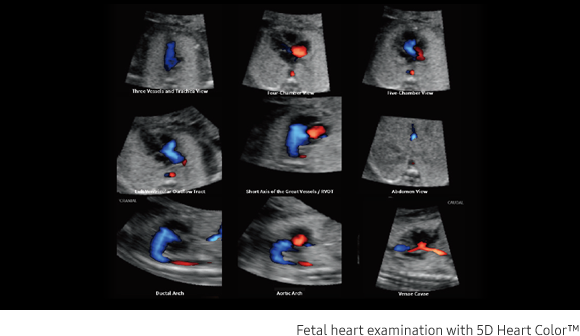

5D Heart Color™ (Fetal heart examination)

5D Heart Color™ uses STIC volume datasets. Color Doppler sonography is demonstrated in 9 standard fetal echocardiography views in a single display.

Innovative fetal assessment


RealisticVue™ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.


CrystalVue™ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a unique combination of intensity, gradient and position.

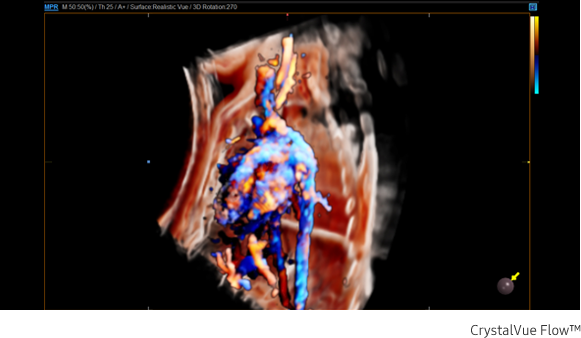

CrystalVue Flow™

CrystalVue Flow™ provides increased depth perception of vascular structures and displays vessels in a range of different imaging planes. CrystalVue Flow™ adds improved spatial precision of hemodynamic flow to morphological information and provides a deeper understanding of relational anatomy and neighboring vessels.

Highly detailed information for accurate diagnosis

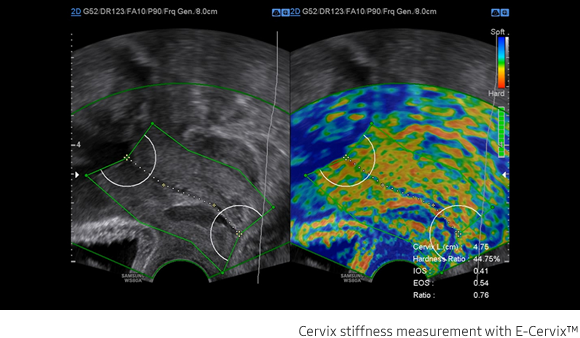

E-Cervix™ (ElastoScan™ for Cervix)

E-cervix™ shows the strain ratio between the internal and external orifices of the uterus using the vibrations caused by the natural internal movements.* This technology could increase reproducibility and reduce inter-observer variance using the sum of 50 elastographic images acquired over 3.5 seconds.
* Neighboring vessels' movements, Fetus' movements, and others.

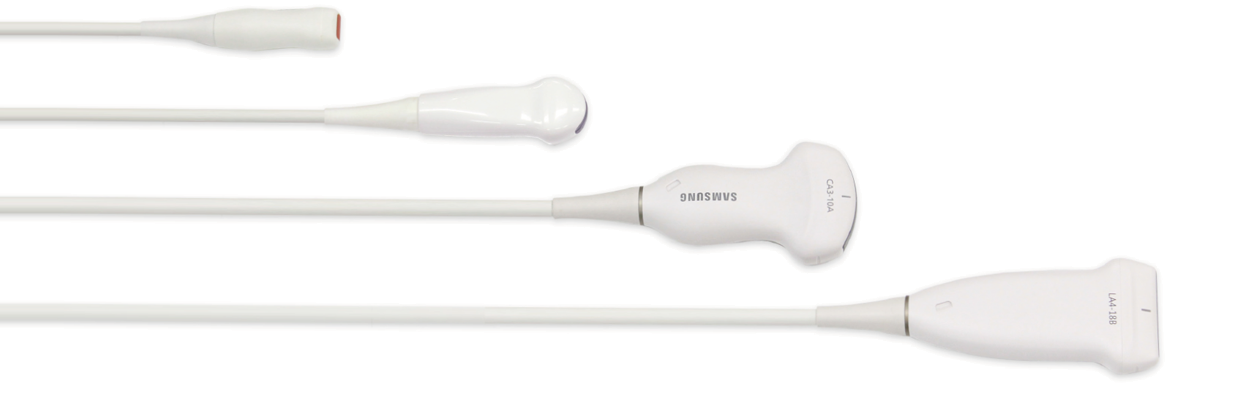

Neonatal / Pediatric transducers

Highly advanced transducers allow for excellent detailed resolution and more efficient scanning.

Intelligent solutions for women’s health

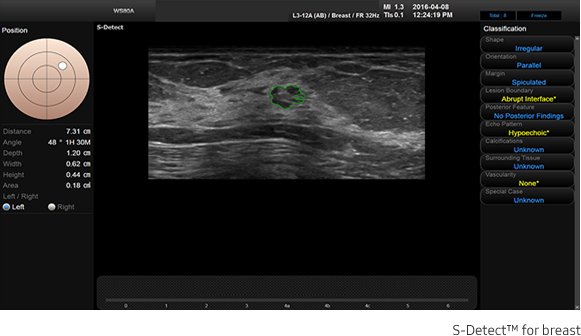

S-Detect™ (S-Detect™ for breast)

S-Detect™ for Breast helps standardize reporting and classification of suspicious breast lesions by incorporating BIRADS ® ATLAS* (Breast Imaging-Reporting and Data System, Atlas) into the tool. When the user selects a region of interest, S-Detect™ for Breast automatically defines the lesion boundaries, provides lexicon classification options and images export for an enhanced and streamlined workflow.

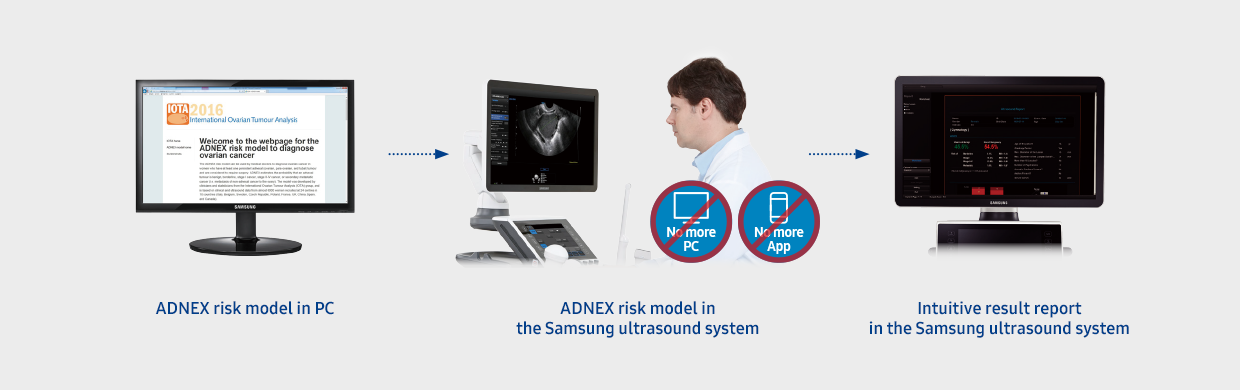

IOTA-ADNEX(Ovarian tumor classification)

Samsung has adopted the ADNEX* model for classifying ovarian tumors as proposed by the IOTA** group and named it IOTA-ADNEX Now all ultrasound procedures, from initial scan to the final report, can be carried out using the same system. It even fills in 2 ultrasound predictors*** automatically, as soon as they are measured, and provides a report that classifies the results according to the ADNEX model 5-level classification for ovarian tumors to help users make the appropriate decisions for managing the patient's condition.

Consistent image quality

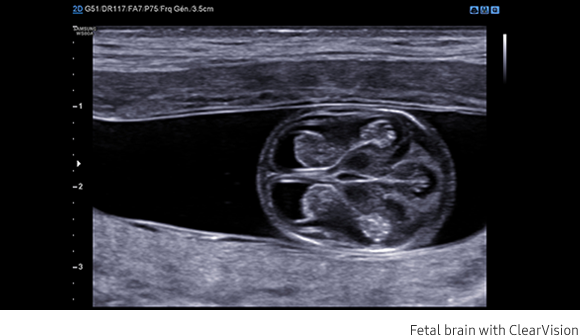

The noise reduction filter improves edge enhancement and creates sharper 2D images for optimal diagnostic performance. The integration of specialized Samsung technology results in a notable improvement in image quality.


This new harmonic technology improves image clarity, near to far. Reducing signal noise, S-Harmonic provides more uniform ultrasound images.

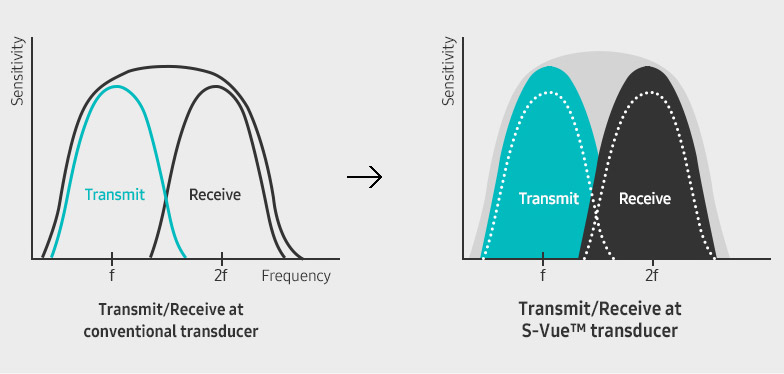

Imaging becomes Even Better with S-Vue™ transducer
(Single Crystal Technology)

S-Vue™ transducers provide more efficient piezoelectric properties, resulting in wider bandwidths that enable better penetration and higher quality resolution on even challenging patients.

In addition, the ergonomically designed S-Vue transducer fits well in the hand and is easy to handle.

Wide angle endocavity transducer

The new wide angle endocavity transducer (E3-12A) offers a field-of-view up to 210° allowing greater visualization of pelvic anatomy. It is often possible to visualize the entire cervix and uterus in normal anatomy as well as viewing left-right symmetry in the transverse plane.

Design for your convenience

23-inch LED monitor

The 23-inch screen LED monitor offers you higher quality color image representation as well as higher resolution compared to conventional monitors.

10.1-inch Touch Screen

The 10.1-inch touch screen is highly sensitive, allowing for easy input to minimize users’ stress from repetitively pressing buttons.p>

Default Gel Warmer

Two-level adjustable gel warmer maintains ultrasound gel at a comfortable temperature from 30°C to 39°C, which comes as a default feature on WS80A with Elite.

Transducer Cable Hangers

Users can arrange the Transducer cables neatly on the two hangers on either side of the system.

Adjustable Control Panel

Smooth up and down lift allows you to adjust the system to the your preferred height without straining.

Additional EC Transducer Holder

The WS80A with Elite features endocavity transducer holders for convenience when performing gynecological scanning and discrete storage when not in use.


S-Vue™ transducers


Abdomen, Obstetrics, Gynecology


Abdomen, Obstetrics, Gynecology, Pediatric


Abdomen, Obstetrics, Gynecology, Musculoskeletal


Abdomen, Obstetrics, Vascular

Curved array transducers


Abdomen, Obstetrics, Gynecology


Pediatric, Vascular


Abdomen, Obstetrics, Gynecology


Abdomen, Obstetrics, Gynecology

Volume transducers


Musculoskeletal, Small parts, Vascular


Abdomen, Obstetrics, Gynecology


Obstetrics, Gynecology, Urology


Obstetrics, Gynecology, Urology

Linear array transducers


Small parts, Vascular, Abdomen, Musculoskeletal


Small parts, Vascular, Musculoskeletal


Small parts, Vascular, Musculoskeletal


Small parts, Vascular, Musculoskeletal




Small parts


Small parts, Vascular, Obstetrics, Musculoskeletal, Abdomen

Endocavity transducers


Obstetrics, Gynecology, Urology


Obstetrics, Gynecology, Urology


Obstetrics, Gynecology, Urology

Phased array transducers


Abdomen, Cardiac, TCD


Abdomen, Cardiac, TCD


Abdomen, Pediatric, TCD


Cardiac, Pediatric
