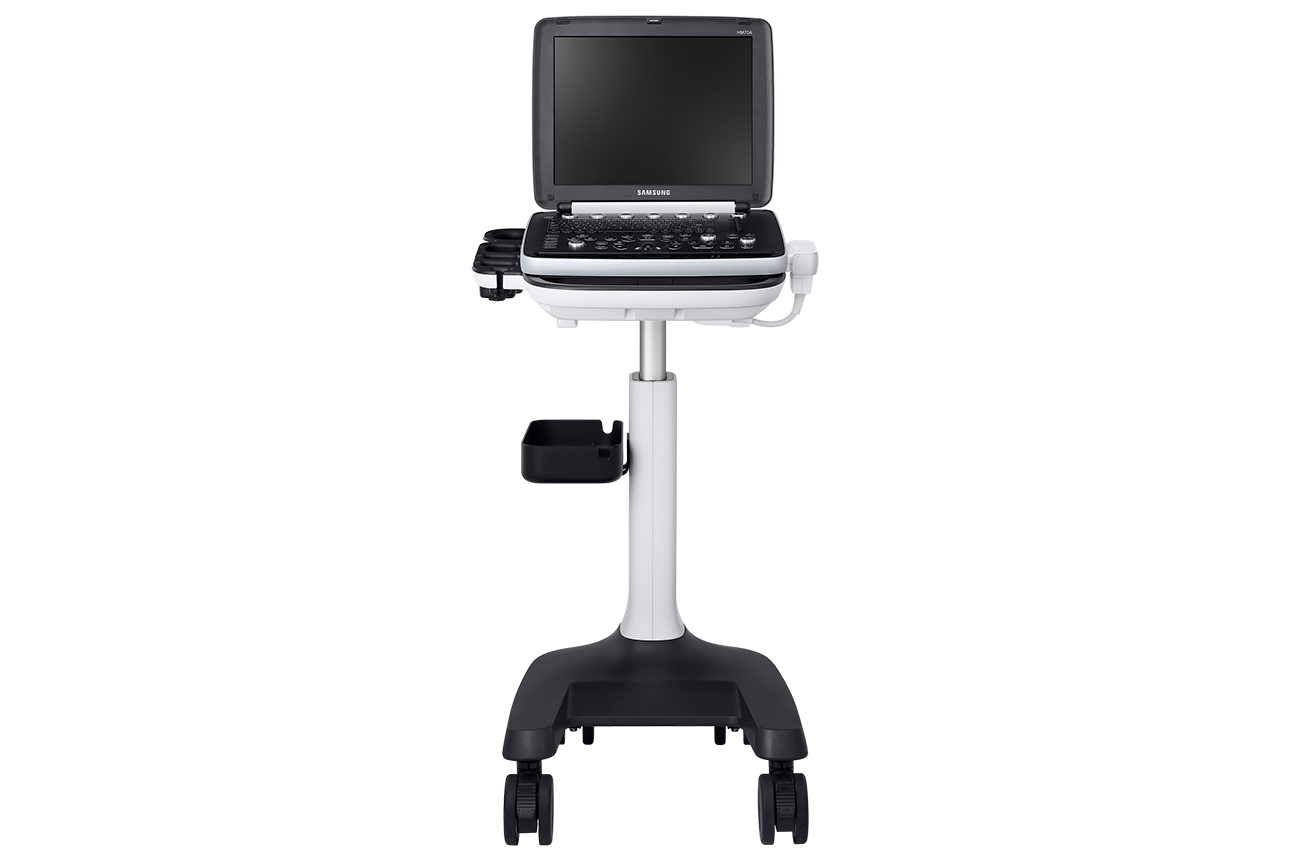

HM70A with Plus

Deliver excellence wherever you go

The HM70A with Plus helps make ultrasound exams and ultrasound-guided procedures more accurate and streamlined with its image performance and efficient, easy-to-use features.

Intuitive Guidance

See more intuitively with HM70A with Plus. With intelligent solution such as NeedlePilot™, the HM70A with Plus brings a new level of productivity to the clinical environment.



Excellent image quality

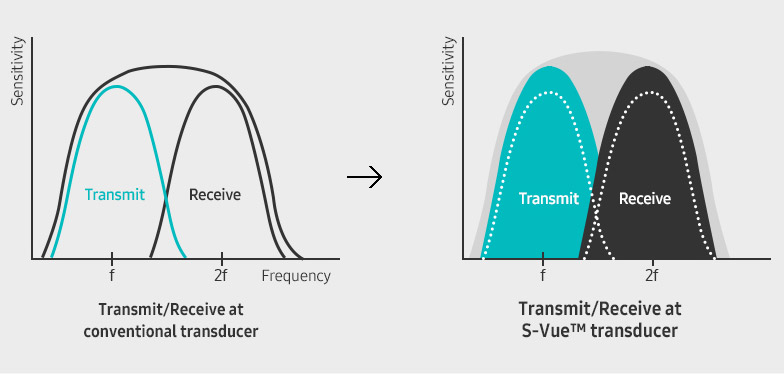

S-Vue™ transducers
(CA1-7AD, CA2-9AD)

The S-Vue transducers provide broader bandwidth and higher sensitivity over conventional Samsung transducers. They enable higher resolution at depth thereby providing improved image quality even with technically challenging patients.

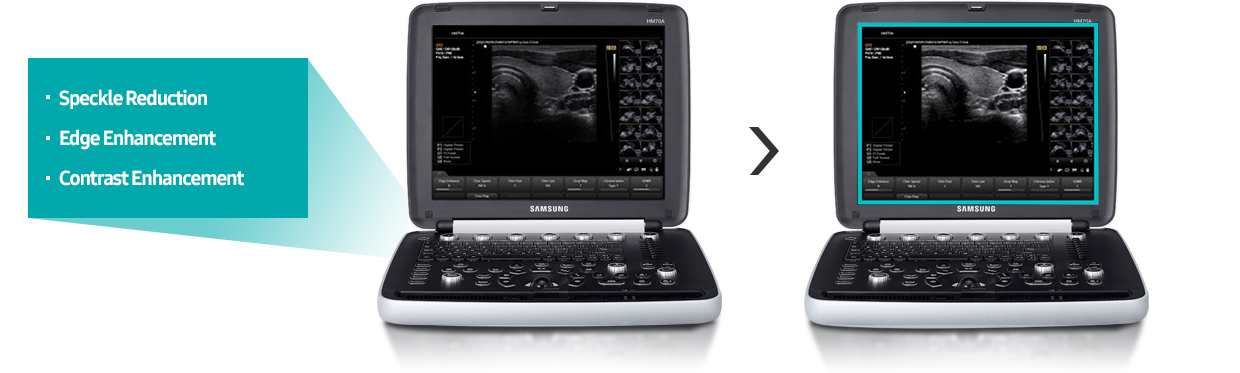

ClearVision

ClearVision eliminates unwanted speckle noise, providing excellent image clavrity.

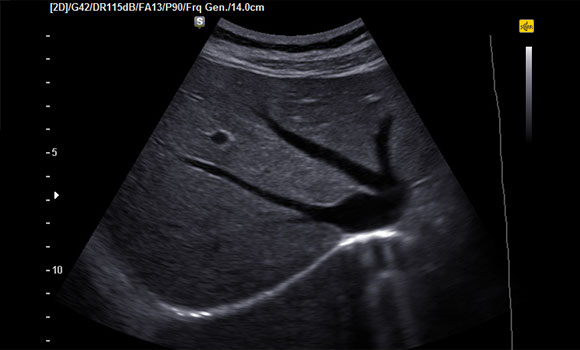

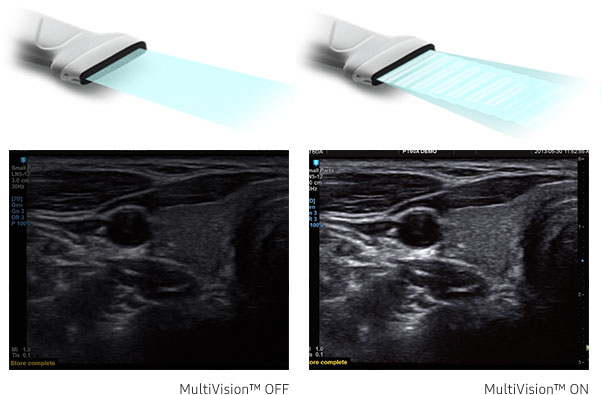

MultiVision™

MultiVision™ compounds many scan lines to provide remarkable spatial and contrast resolution

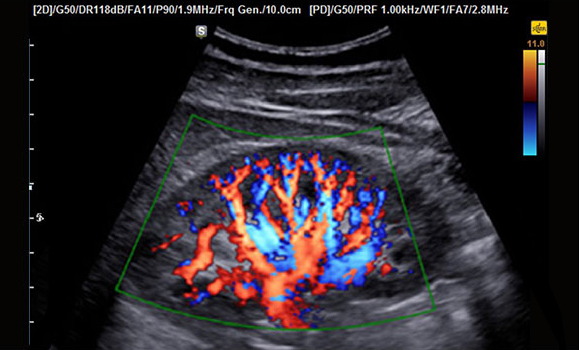

S-Flow™

S-Flow™ is a sensitive color Doppler that can reveal peripheral blood vessels even when blood flow detection is difficult.

Excellent Point-of-Care solutions

NeedlePilot™

NeedlePilot™ uses magnetized needle and magnetic sensors embedded in the transducer to provide onscreen color-coded graphics that clearly identify the correct needle plane. This makes it simple to identify the correct needle trajectory to reach the target anatomy, making NeedlePilot™ useful for both In-Plane and Out-of-Plane approaches.

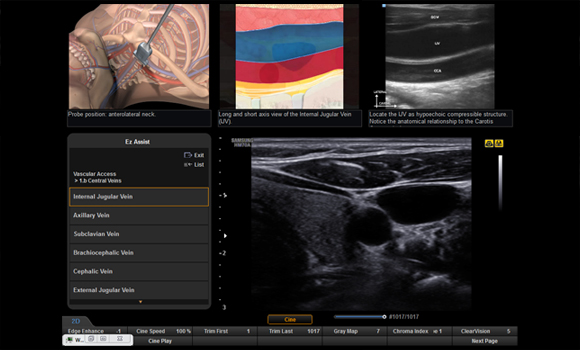

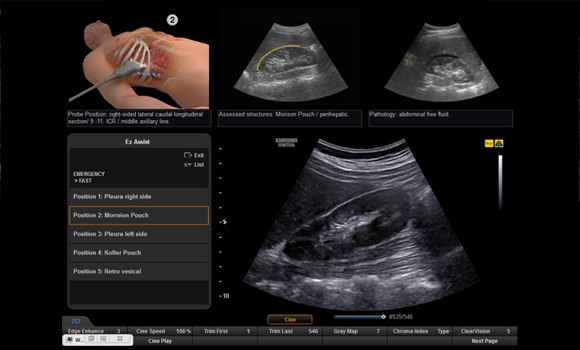

EzAssist™

As a reference tool for plane scanning, EzAssist™ has multiple clinical applications during live scanning. This allows clinicians to practice procedures using valuable reference materials such as clinical reference images and animation.

Qpath™

The HM70A can be connected to the Qpath™ cloud server provided by Telexy. Users can transfer patient information and images to Qpath™ cloud server via wired/wireless LAN. The HM70A uses Q-View to access to the Qpath™ cloud server.

Barcode Scanner

Patient information can be automatically transferred to ultrasound system by scanning the bar-code.

Excellent musculoskeletal solutions

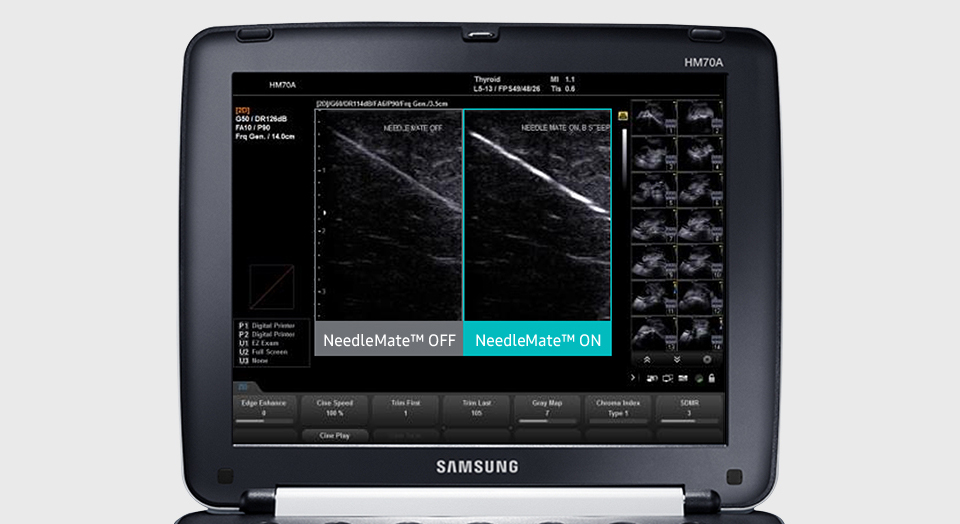

NeedleMate™

With pinpoint precision, NeedleMate™ delineates needle location when performing interventions such as nerve blocks. Improved accuracy and efficiency in diagnosis are possible with beam steering added to NeedleMate™.

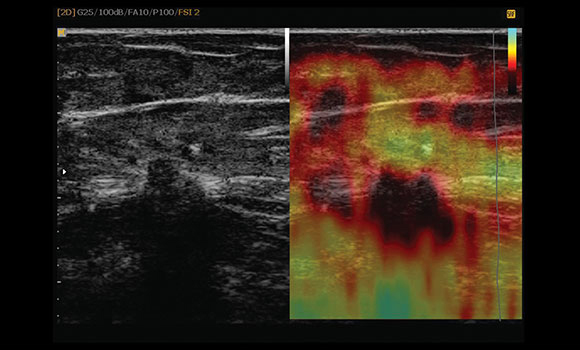

ElastoScan™

ElastoScan™ detects the presence of a solid mass in tissues and converts the stiffness into color images. It verifies the presence of lesions, reducing the burden of further cervical palpation.

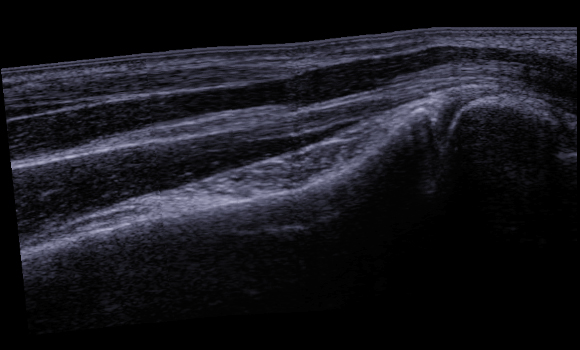

Panoramic

Panoramic imaging displays as an extended field-of-view so users can examine wide areas that do not fit into one image as a single image. Panoramic imaging also supports angular scanning from linear transducer data acquisition.

Excellent cardiovascular solutions

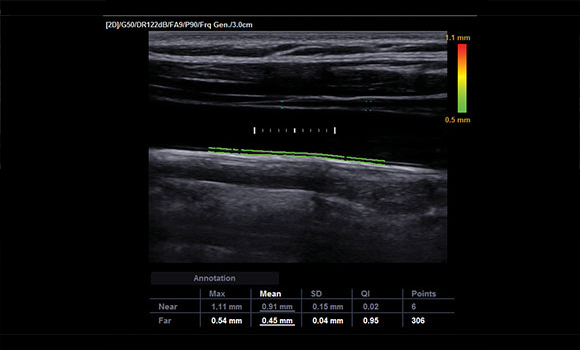

AutoIMT™

AutoIMT™ allows fast measu rement of the carotid artery intima-media thickness (IMT) for diagnosis of the patient's risks of stroke or heart attack. The simple operation helps enhance exam productivity and increase patient throughput.

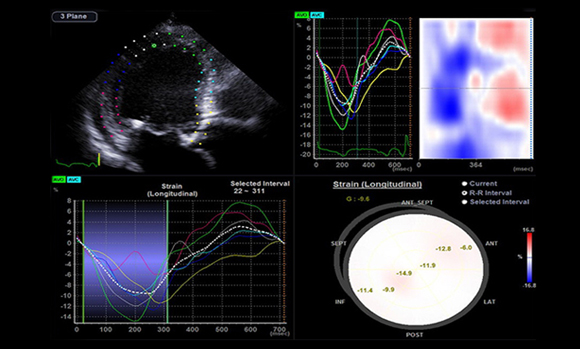

Strain

Strain quantitatively displays a Bull's Eye which shows left ventricular motion and dyssynchrony at a glance.

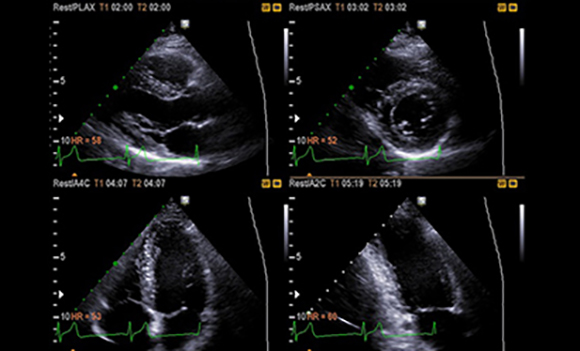

StressEcho

The StressEcho package includes wall motion scoring and reporting. It includes exercise StressEcho, pharmacologic StressEcho, diastolic StressEcho, and free programmable StressEcho.

A variety of tools to increase efficiency

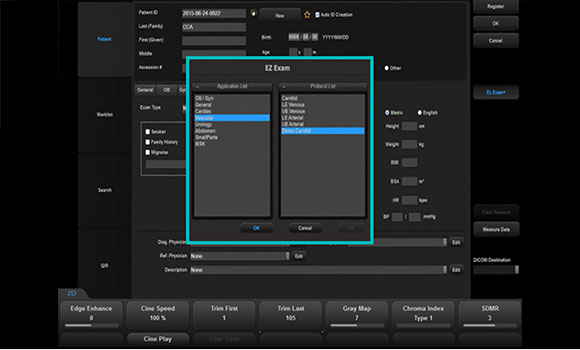

EzExam+™

EzExam+™ enables users to build or to use predefined protocols. It transforms the ultrasound investigation into a streamlined process. EzExam+™ ensures the full investigation is performed, eliminating the risk of forgetting an image or loop capture, as well as measurement and transducer preset changes.

QuickScan™

In 2D imaging, QuickScan™ quickly optimizes brightness levels by adjusting the gain and TGC controls. In PW pectral Doppler Mode, QuickScan™ easily optimizes the spectrum by adjusting the scale and baseline.

Fast Booting

SSD technology enables powering on in 85 seconds from the powered off state, and in approximately 25 seconds from the sleep mode.

Full Screen Mode

With one touch, users can expand the image area to fit the entire screen, optimizing the view for image analysis.

Extended battery

The extended battery supports approximately 3 hours of system operation when it is fully charged.

Transducers



Curved array transducers

CA1-7AD

Abdomen, Obstetrics, Gynecology, Musculoskeletal

C2-6

Abdomen, Obstetrics, Gynecology

CF4-9

Vascular, Pediatric

CA2-9AD

Abdomen, Obstetrics, Gynecology



Linear array transducers

L4-7

Abdomen, Musculoskeletal, Small parts, Vascular

LA3-16AD

Small parts, Vascular, Musculoskeletal

L7-16

Musculoskeletal, Small parts, Vascular

LS6-15

Musculoskeletal, Intra-operative

LS3-14B

Small parts, Vascular, Musculoskeletal



Volume transducers

V5-9

Obstetrics, Gynecology, Urology

VN4-8

Abdomen, Obstetrics, Gynecology



Endocavity transducer

EVN4-9

Obstetrics, Gynecology, Urology



Phased array transducers

PE2-4

Abdomen, Cardiac, TCD

P3-8

Abdomen, Cardiac

P4-12

Cardiac, Pediatric



CW transducer

DP2B

Cardiac



TEE transducer

MMPT3-7

Cardiac
