New Momentum of Imaging

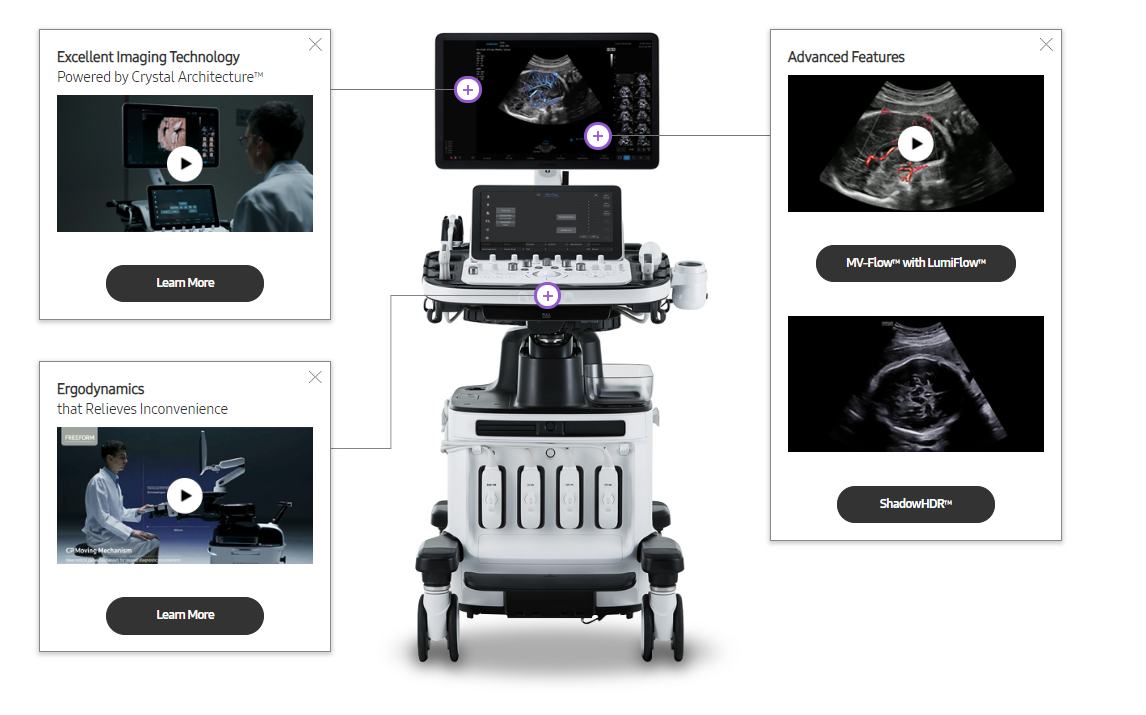

HERA W10

HERA W10, the premier model of the HERA platform, will help you get more insight in diagnosis with its intuitive visualizations, precise analytic features, and instant operation. It is our commitment for Obstetrics and Gynecology applications to support for life-long healthcare of women, diligently pursuing for new possibilities in ultrasound diagnosis.



Crystal Architecture™

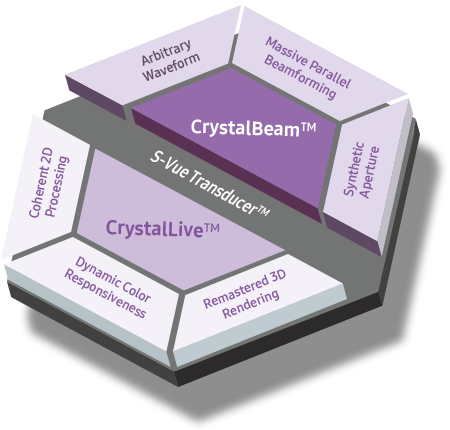

Crystal Architecture™, an imaging architecture that combines CrystalBeam™ and CrystalLive™, based on S-Vue Transducer™, is to provide crystal clear image.

- CrystalBeam™ is a new beamforming technology beneficial in delivering high-quality image resolution and increased uniformity of images.
- CrystalLive™ is Samsung’s up-to-date ultrasound imaging engine with enhanced 2D image processing, 3D rendering and color signal processing, to offer outstanding image performance and efficient workflow during complex cases.

CrystalBeam™

A New Beamforming for In-depth Image Creation

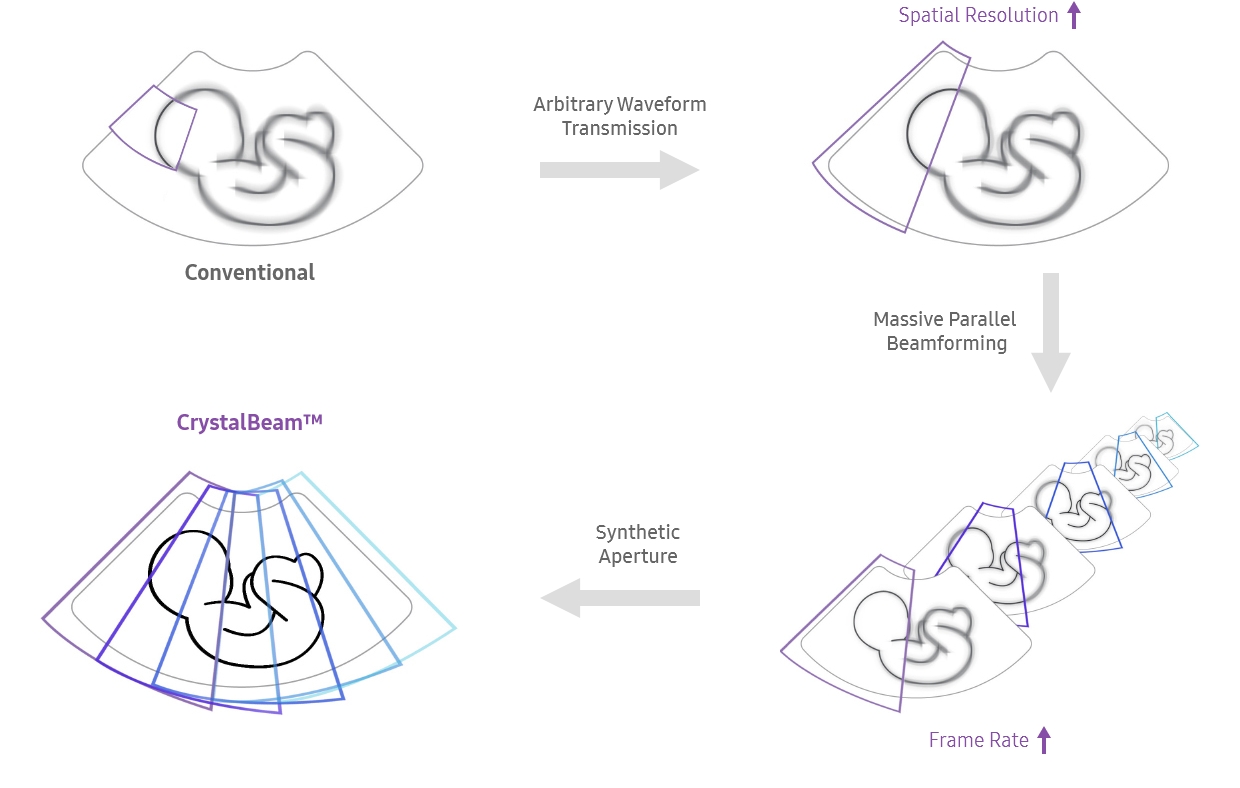

CrystalBeam™ utilizes Arbitrary Waveform Transmission, Massive Parallel Beamforming and Synthetic Aperture technologies to produce a faster frame rate and improved image uniformity.

CrystalLive™ 2D

Sophisticated 2D Images Processed by CrystalLive™

CrystalLive™ helps you to make more confident diagnoses with fundamental 2D images. Some major advantages of 2D images include shadow-suppressed images, lessened halo artifacts, and mitigated blurred area.

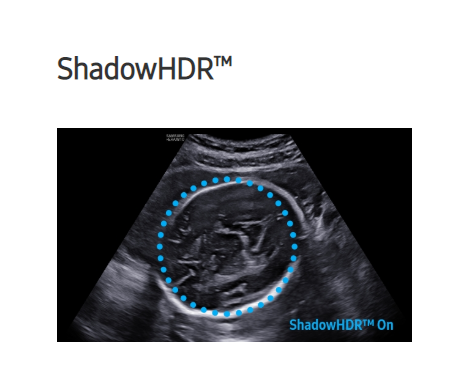

ShadowHDR™ selectively applies high-frequency and low-frequency of the ultrasound to identify shadow areas such as fetal head or spine where attenuation occurs.

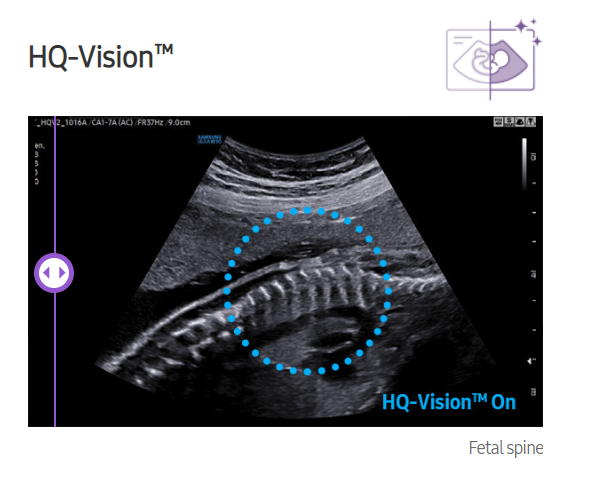

HQ-Vision™ provides clearer images by mitigating the characteristics of ultrasound images that are slightly blurred than the actual vision.

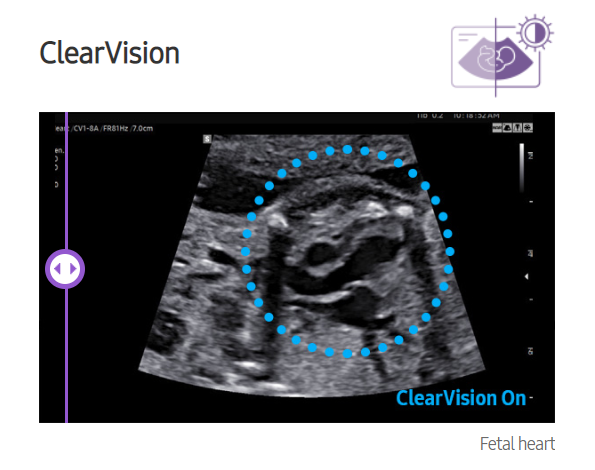

ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images. It reduces halo artifact that occurs when the tissue contour is enhanced, and removes noises on the tissue boundaries.

CrystalLive™ 3D

Realistic Description of 3D/4D Performance

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

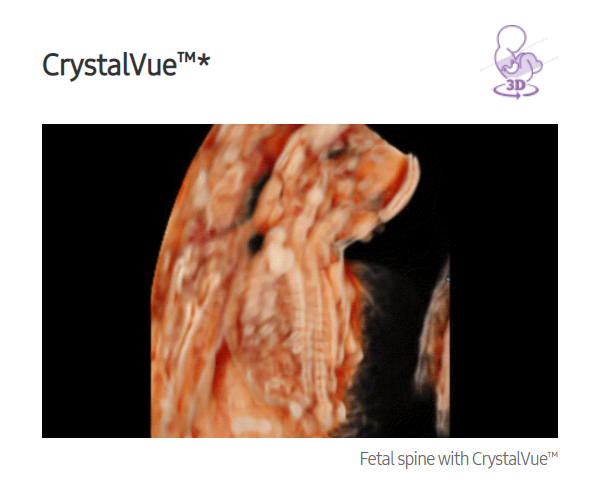

CrystalVue™ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.
*Optional Extra

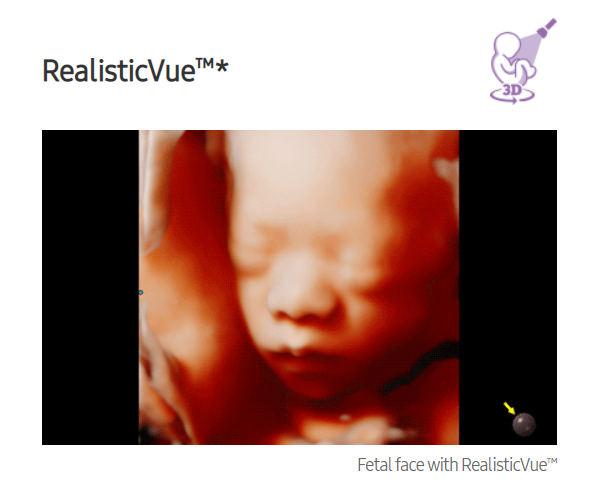

RealisticVue™ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.
*Optional Extra

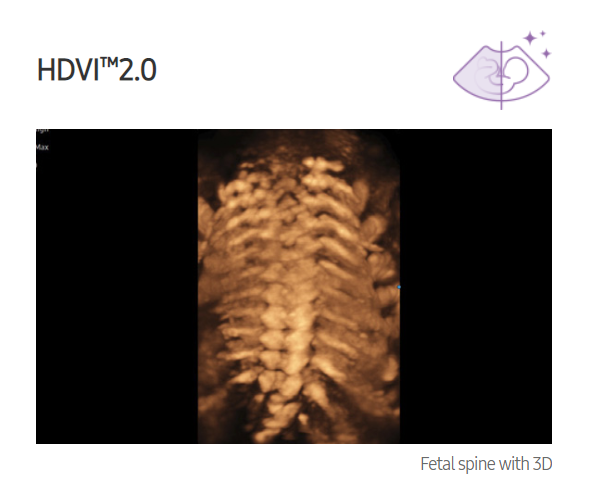

HDVI™ is a volume rendering technology that improves visualization of edges and small structures in volume data. Upgraded marginal expression and image saturation expresses the very details from angle to shadow of the fetus.

CrystalLive™ Color

Detailed Expression of Blood Flow Dynamics

Color performance of CrystalLive™ has been improved to clearly visualize the hemodynamics of the blood flow. Greater sensitivity resulting from new color signal processing allows for a more accurate detection of peripheral blood vessels, microcirculatory blood flows, and volumes of slow blood flows.

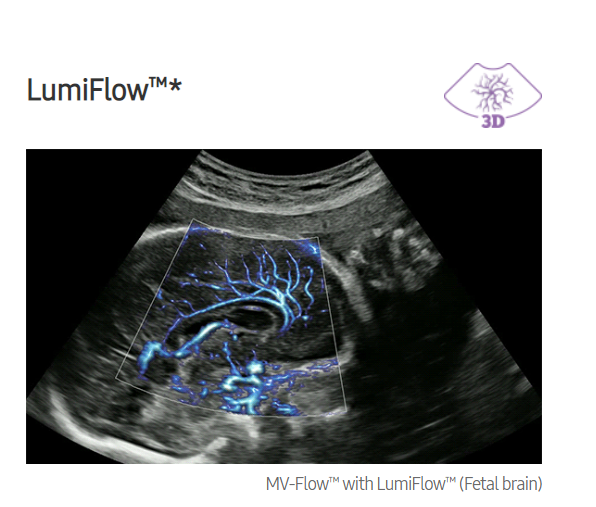

LumiFlow™ is a three-dimensional visualization of blood flow, which helps to understand the structure of blood flow and small vessels intuitively.
*Optional Extra

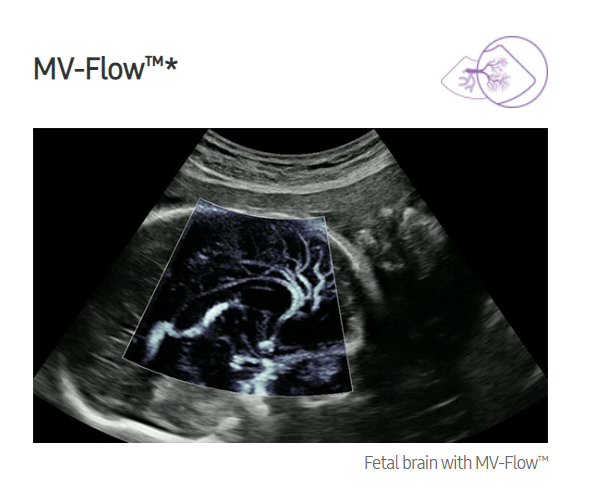

MV-Flow™ offers a novel alternative to power Doppler for visualizing slow flow of microvascularized structures. High frame rates and advanced filtering enable MV-Flow™ to provide a detailed view of blood flow in relation to surrounding tissue or pathology with enhanced spatial resolution.
*Optional Extra

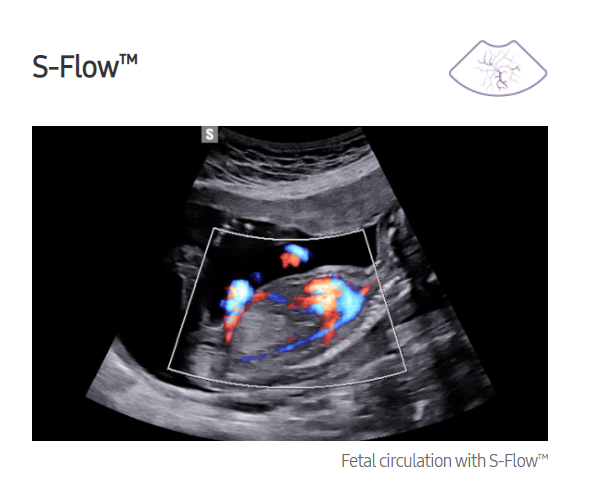

S-Flow™, a directional Power Doppler imaging technology, can help to detect even the peripheral blood vessels. It enables accurate diagnosis when blood flow examination is especially difficult.

Crystal Clear Cycle™

Samsung’s Commitment to Life-Long Healthcare for Women

Crystal Clear Cycle™, an integrated solution for women’s health issues, represents Samsung’s commitment to ensuring life-long healthcare for women. The Crystal Clear Cycle™ categorizes the most significant health events for women into six stages and provides effective diagnostic solutions at each stage.

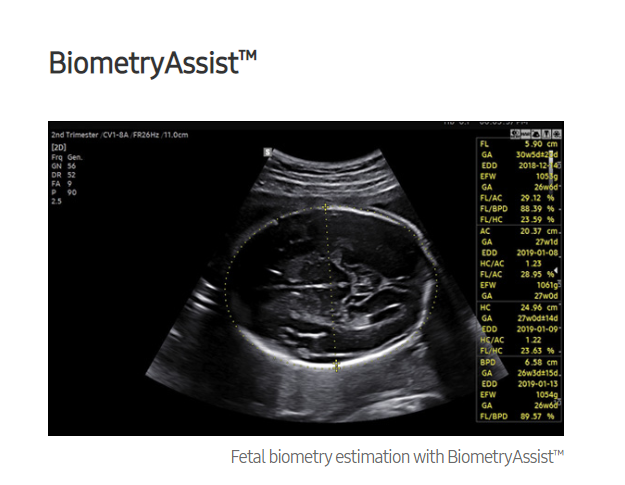

A semi-automatic technology for biometric measurement, BiometryAssist™, enables users to measure the growth of the fetus more quickly and with greater accuracy while maintaining exam consistency.

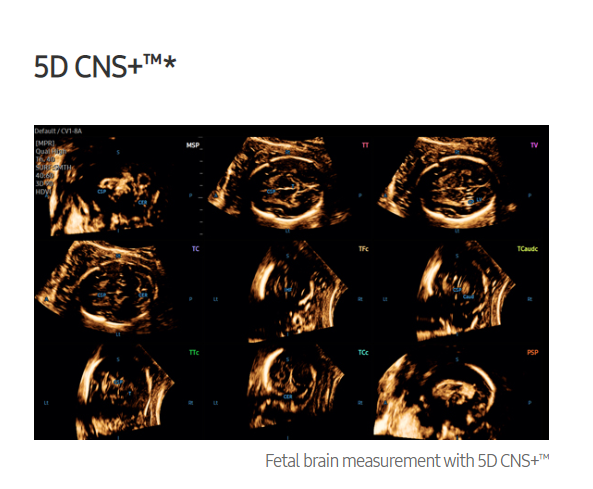

5D CNS+™ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamline workflow.
*Optional Extra

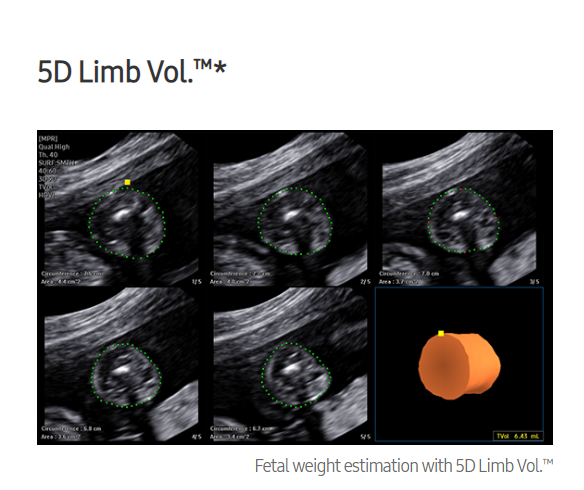

5D Limb Vol.™ is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set.
*Optional Extra

FreeForm™

Ergodynamics that Relieves Inoconveniencet

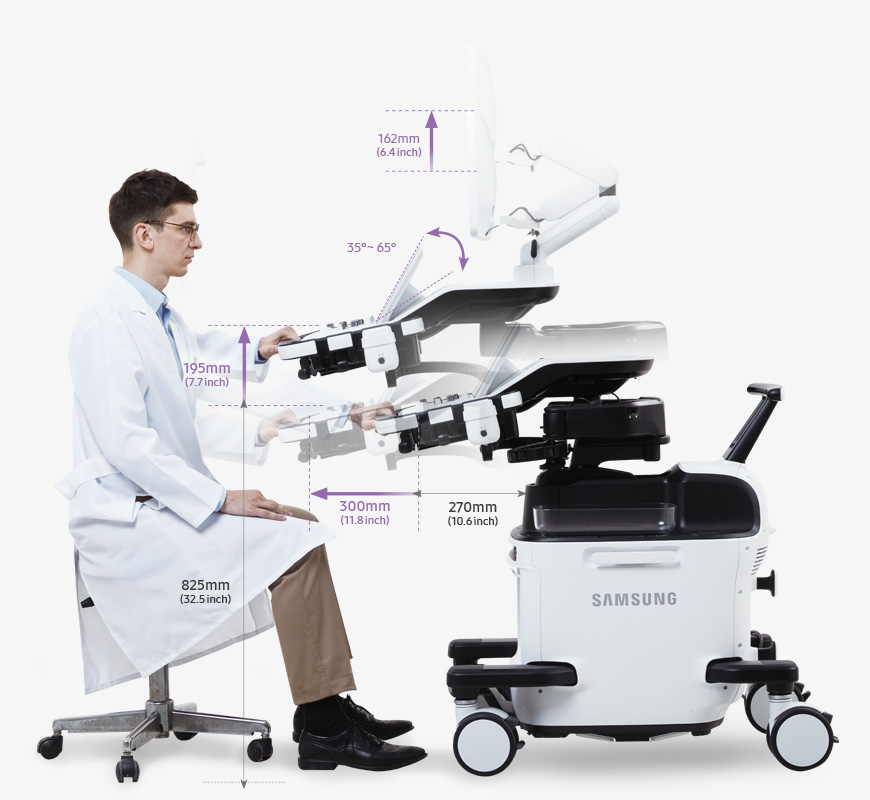

FreeForm™ refers to Samsung’s new design theme. It was developed to provide a more comfortable diagnostic experience by reducing the need for movement from one spot to another. Our goal is to satisfy user’s working environment by applying a mechanism to the control panel in its widemoving range, as well as by considering a user’s arm reach. This enables it to offer a sufficient amount of space for the user’s knee.

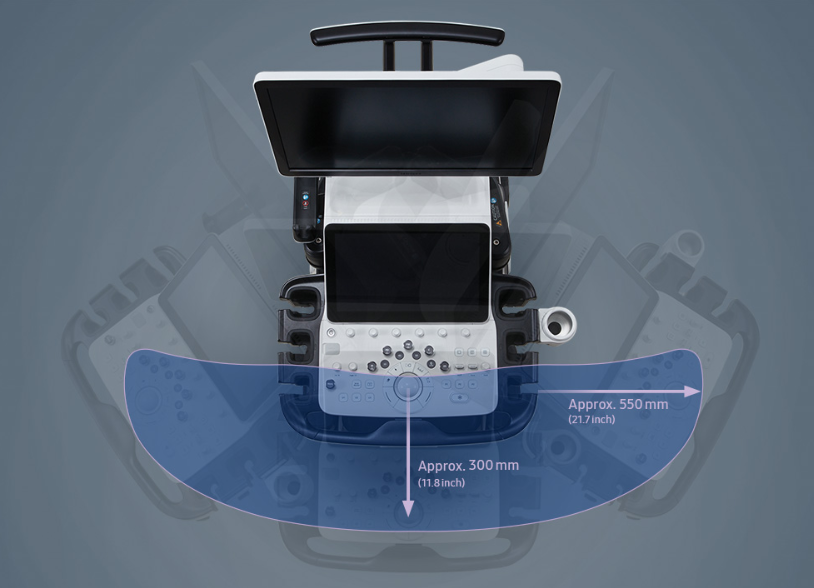

Control Panel Moving Mechanism

An internal study showed that Samsung’s Control Panel Moving Mechanism reduces shoulder stress by about a third compared to the previous model. It does this by providing users with more space near the control panel area, resulting in less repetitive strain from hours of scanning. Users can now pull the control panel and rotate its angle at the same time.

Streamlined Workflow

Customizable for The Way You Work

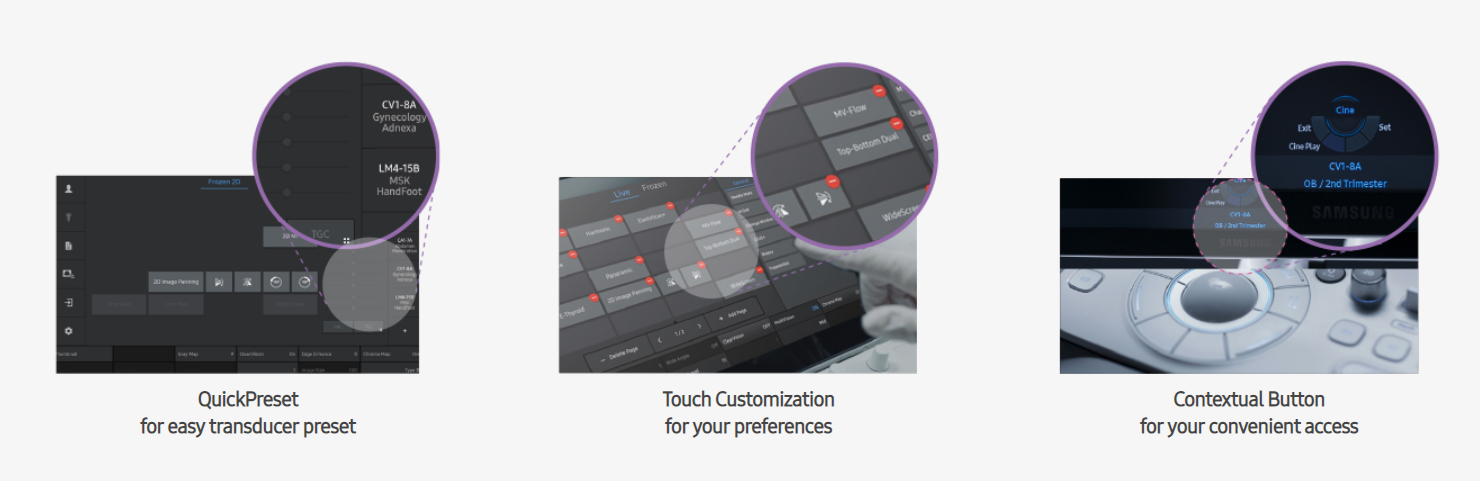

We believe that a truly great system offers customer-centric working conditions. Users of the HERA W10 have the option of customizing its diagnostic settings based on personalized protocol. It results in a more streamlined examination process and faster workflows.

Fast boot up with MobileSleep

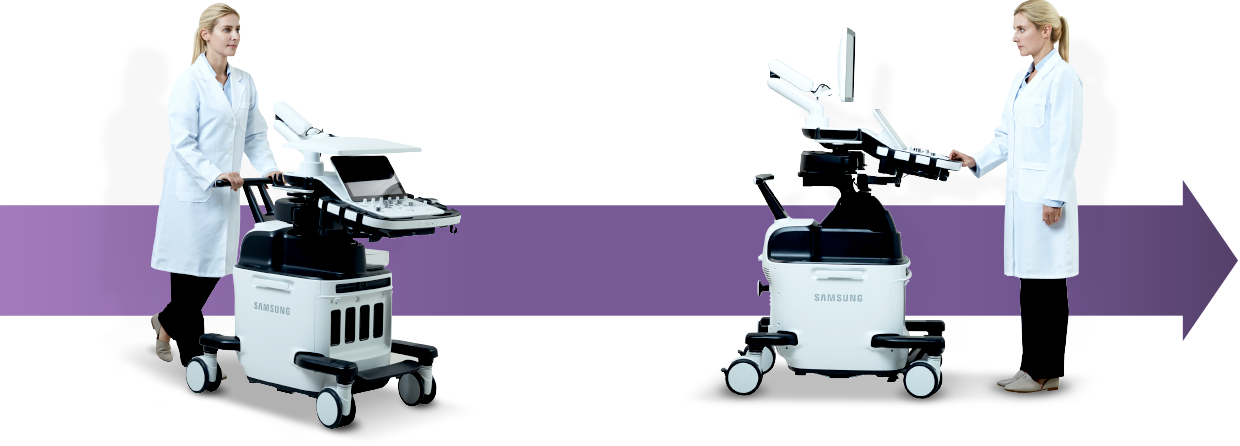

Booting-up from sleep mode saves about 63% of your time, when compared to normal boot-up. MobileSleep enters to the sleep mode quickly for easy maneuverability of the system.




Transducers



Volume Transducers

CV1-8A

Abdomen, obstetrics, gynecology

EV3-10B

Obstetrics, gynecology, urology

Convex Array Transducers

CA3-10A

Abdomen, obstetrics, gynecology

CA2-9A

Abdomen, obstetrics, gynecology

CA2-9A

Abdomen, obstetrics, gynecology

CA1-7A

Abdomen, obstetrics, gynecology, contrast

CF4-9

Pediatric, vascular

Linear Array Transducers

L3-12A

Small parts, vascular, musculoskeletal

LA2-9A

Small parts, vascular, musculoskeletal

Endocavity Transducers

EA2-11B

Obstetrics, gynecology, urology

VR5-9

Obstetrics, gynecology, urology

E3-12A

Obstetrics, gynecology, urology

Phased Array Transducers

PA4-12B

Cardiac, pediatric

PM1-6A

Cardiac, TCD, abdomen

PA3-8B

Cardiac, pediatric, abdomen
